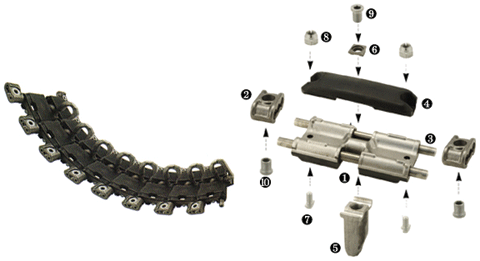

1. AD60702004
   • Shoe Body
2. AD60702007
   • Connector
3. AD60702006
   • Pin
4. AD60702010
   • Pad Assembly
5. AD60702014
   • Center Guide
6. AD60702015
   • Center Guide Cap
7. 688-29-38
   • Pad Bolt
8. 700-30-352
   • Pad Nut
9. AD60702016
   • Center Guide Bolt
10. AD60702008
    • Wedge Bolt (Screw)

BMP–3 Track Shoe

ISO Group is a prime supplier to the World’s Governments of the Track Shoe for the BMP–3 Armored Personnel Carrier. This ISO9001 engineered product is manufactured from the highest quality materials.

Product Data:

• Noun: TRACK SHOE,VEHICULAR
• Single Shoe Assembly:
• Part Number: AD60702001

Application Data:

• BMP-3 Series
• Pitch: 150mm Width: 381mm Height: 178mm
• Track Shoe Assemblies per Vehicle: 174
