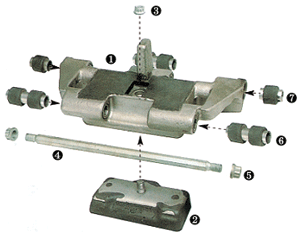

1. 10934637
   • Shoe Body
2. 10934893
   • 2530-00-780-5216
   • Pad Assembly
3. 10911106
   • 5310-00-854-6481
   • Pad Nut
4. 10898687
   • 5306-00-733-8153
   • Pin
5. 10911106
   • 5310-00-854-6481
   • Pin Nut
6. 10898614
   • Bushing - Long
7. 10898612
   • Bushing - Short

M107 / M110 and M578 (T132E1) Track Shoe

ISO Group is a prime supplier to the World’s Governments of the Track Shoe for the M107 / M110 Self–Propelled Howitzers and M578 light recovery vehicle. This ISO9001 engineered product is manufactured from the highest quality materials.

Product Data:

• Noun: TRACK SHOE,VEHICULAR
• Single Shoe Assembly:
• NSN: 2530-00-076-7115
• Part Number: 10934639

Application Data:

• M107 / M110 Series and M578 Series
• Pitch: 145.5mm Width: 458mm Height: 175mm
• Track Shoe Assemblies per Vehicle: 152
